| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JULI |
| Certification: | ROHS,REACH,FDA |
| Model Number: | Y2 |
| Minimum Order Quantity: | 1CubmicMeter |
| Price: | USD160-230/CUBMIC METER |
| Packaging Details: | Woven Bag,10-15kg/Bag |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000CUBMIC METERS/MONTH |
| After-sales Service Provided: | Video Technical Support,Overseas Service Center Available | Color: | White,Customized Color |
|---|---|---|---|
| Efficiency: | 99.99% | Material: | HDPE |
| Application: | Water Treatment,bio Media For Water Treatment | Certification: | ISO9001 |
| High Light: | JULI 7mm HDPE Filter Media,Y2 10mm k1 micro media,ISO9001 HDPE Filter Media |
||
Biological Process K1 Moving Bed Filter Bio Media with 10*7mm size virgin HDPE Filter Media
Description of Biological Process MBBR Filter Media:
Biofilm reactors are divided into fixed bed and flow bed. In the fixed bed, the biofilm carrier is fixed. In the traditional sewage treatment system, the main technology is the fixed bed biofilm technology. However, there are some problems in the traditional fixed bed biofilm process, such as less effective contact between microorganisms and sewage, easy blockage of filter material, periodic back washing, and difficult replacement of fixed packing and aeration equipment under packing. In recent years, the performance and stability of MBBR have been improved continuously, which has become an important technology of sewage treatment.
Teachnical Parameter:
| ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
| Rooms | Pcs | 4 | 5 | 19 | 6 | 64 |
| Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
| Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
| Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
| Stacked | Pcs/m3 | ＞830000 | ＞850000 | ＞97000 | ＞260000 | ＞210000 |
| Porosity | % | ＞85 | ＞85 | ＞90 | ＞85 | ＞85 |
| Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
| Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
| BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
| COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
| proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Service life | Year | ＞20 | ＞20 | ＞20 | ＞20 | ＞20 |
| Bulk Density | Kg/m3 | 135kg | 145kg | 95kg | 120kg | 135kg |
Product Fetures:
1. The sludge concentration in the reactor is high, which is 5-10 times higher than that of the conventional activated sludge process, greatly accelerating the reaction speed.
2. Small head loss, not easy to block, no need for back washing, generally no need for return flow.
3. The suspended packing makes the nitrification and denitrification process go on at the same time, which can remove nitrogen and phosphorus well. COD removal rate up to 90%
4. The impact load resistance is very strong, which can resist large water impact load and maintain stable treatment effect in the actual project.
5. The service life shall be at least 20 years.
6. Low management cost.
7. Strong low temperature resistance. In low temperature environment, MBBR can also ensure a very high removal rate of ammonia nitrogen, and the effluent ammonia nitrogen can reach the standard stably.

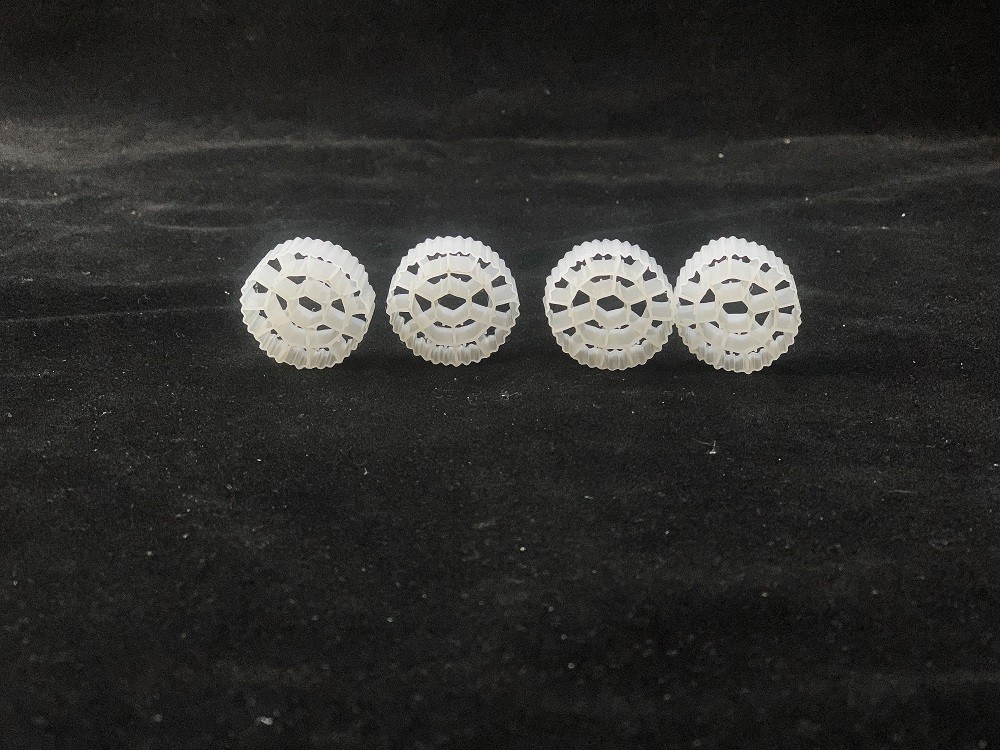

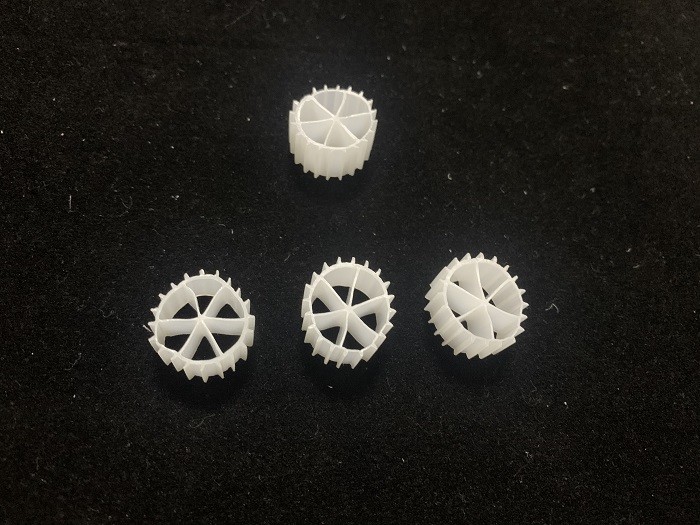

Product Pictures:
