| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JULI |
| Certification: | ROHS,REACH,FDA |
| Model Number: | Y1-Y5 |
| Minimum Order Quantity: | 1CubmicMeter |
| Price: | USD160-200/CUBMIC METER |
| Packaging Details: | Woven Bag,10-15kg/Bag |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000CUBMIC METERS/MONTH |
| Color: | White | Density: | 0.94-1 |
|---|---|---|---|
| Material: | Virgin HDPE | Product Name: | Moving Bed Biofilm Reactor |
| High Light: | Y5 K3 moving bed pond filter,Moving Bed Biofilm Reactor,JULI moving bed pond filter |
||

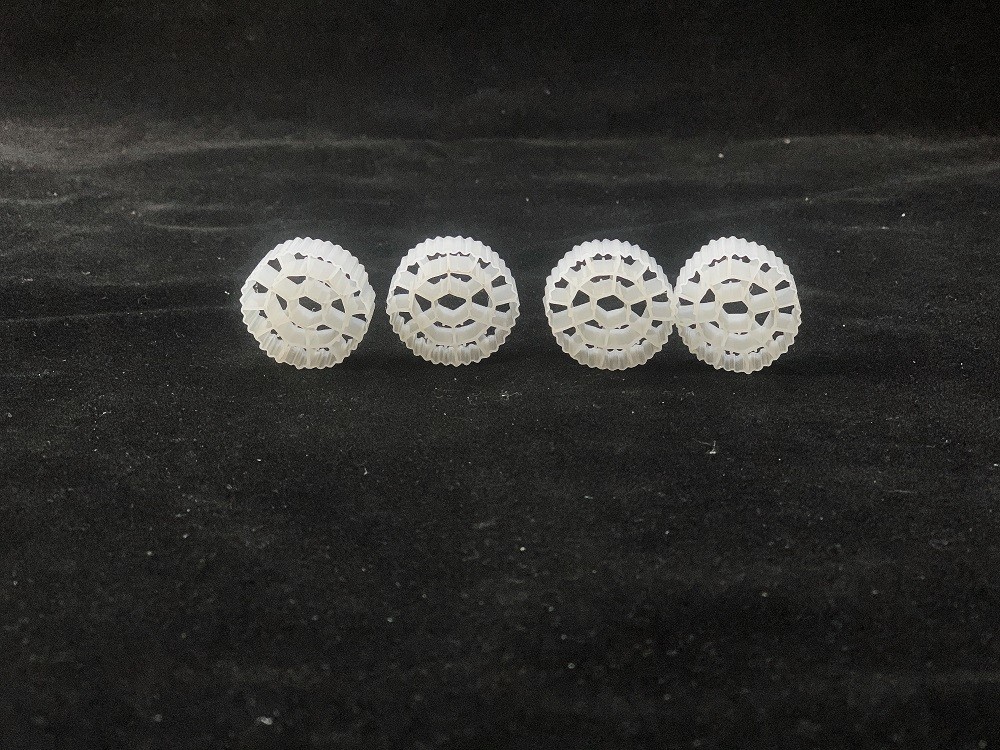

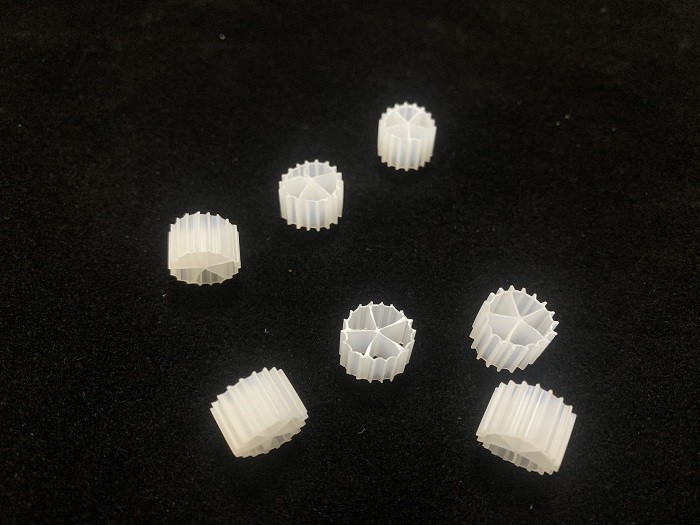

White Color K3 HDPE Filter Media China factory Good Impact Resistance With Virgin HDPE for waste water treatment
Product Description:
Due to the turbulent movement of the MBBR biofilter media in suspension, the filter media is self-cleaning, requiring no maintenance
This allows the filter to reach optimum effectiveness without the disturbance of periodic maintenance, avoiding unnecessary loss of bacteria within the filter
This allows stable, low levels of ammonia and nitrite within the water
First few of these products are similar to the patented kindles media used in fish farming and waste treatment
Design creates an environment for effective nitrification to take place, water flow is created by aeration that circulates the media throughout the vessel
This high surface area of these products translates into a small physical area needed for the biofiltration unit
Due to vigorous mixing of the kaldnes-like media through aeration, the media is self-cleaning, requiring no maintenance
This allows the filter to reach optimum effectiveness
Periodic maintenance is not necessary, preventing the unnecessary loss of bacteria and subsequent ammonia and nitrite spikes in the system
Density: 0. 96-0. 98g/cm3
Technical Specification:
| ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
| Rooms | rooms | 4 | 5 | 19 | 6 | 64 |
| Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
| Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
| Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
| Stacked | Pcs/m3 | ＞830000 | ＞850000 | ＞97000 | ＞260000 | ＞210000 |
| Porosity | % | ＞85 | ＞85 | ＞90 | ＞85 | ＞85 |
| Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
| Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
| BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
| COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
| proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Service life | Year | ＞20 | ＞20 | ＞20 | ＞20 | ＞20 |
| Bulk Density | Kg/m3 | 135kg | 145kg | 95kg | 120kg | 135kg |
WORK PROCESSING:
APPLICATION:
