Virgin HDPE Diy Pond Filter Media Large Surface Area
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULI |
| Certification: | ROHS,REACH,FDA |
| Model Number: | Y4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1CubmicMeter |
|---|---|
| Price: | USD160-230/CUBMIC METER |
| Packaging Details: | Woven Bag,10-15kg/Bag |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1000 CUBMIC METERS/MONTH |
|
Detail Information |
|||
| Product Name: | MBBR Fitler Media With Virgin HDPE Material | Life Span: | More Than 15 Years |
|---|---|---|---|
| Material: | Virgin HDPE Granules | Density: | 0.94-0.98g/cm3 |
| Sample: | Free Sample Is Avaliable | Port: | Shanghai Or Ningbo |
| High Light: | 16mm diy pond filter media,10mm pond filter bio media,6 rooms diy pond filter media |
||
Product Description
Virgin HDPE Diy Pond Filter Media Large Surface Area
virgin HDPE material Eco Friendly Pond MBBR Filter Media with large Surface Area
MBBR Description:
This MBBR media upon construction, the whole system can be set at a lower degree, say 40% in the beginning, and will just later move up to 70% through filling more carriers. The mbbr media surface area should also be considered as it is a great basis on the system performance.
Having a sieve on the outlet of the tank will add a better performance and is plainly necessary to put hold on the plastic carriers from breaking free of the aeration process.
The Features of MBBR:
1. The mbbr media can be used both domestic and industrial waste water
2. accelerate the reaction rate significantly, compared with the activated sludge process, reaction efficiency 5-10 times
3. simultaneous nitrification and denitrification process, it can be a good denitrification and phosphorus removal
4. no need bracket, just put in the Mbbr media directly. Our media packing free flow and cutting air bubbles in water, increase dissolved oxygen in water, save energy consumption
The parameter of the MBBR Filter Media:
| ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
| Rooms | rooms | 4 | 5 | 19 | 6 | 64 |
| Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
| Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
| Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
| Stacked | Pcs/m3 | ＞830000 | ＞850000 | ＞97000 | ＞260000 | ＞210000 |
| Porosity | % | ＞85 | ＞85 | ＞90 | ＞85 | ＞85 |
| Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
| Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
| BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
| COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
| proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Service life | Year | ＞20 | ＞20 | ＞20 | ＞20 | ＞20 |
| Bulk Density | Kg/m3 | 135kg | 145kg | 95kg | 120kg | 135kg |

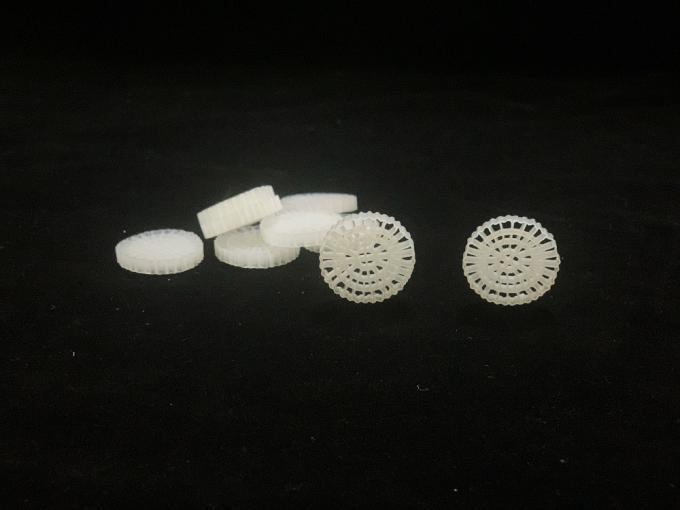

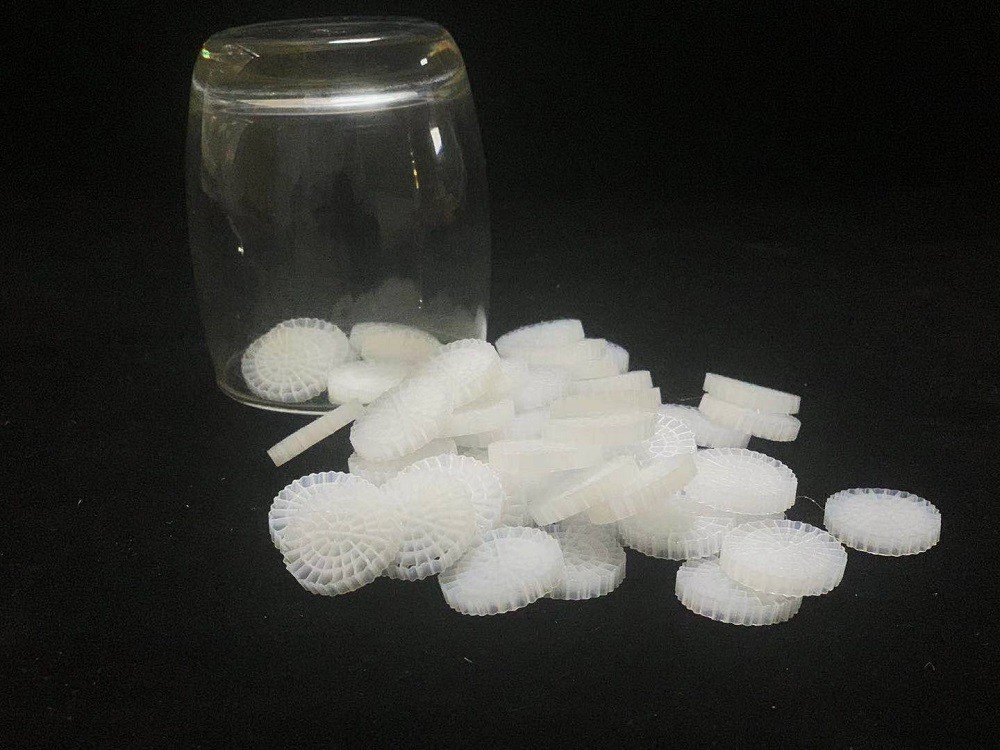

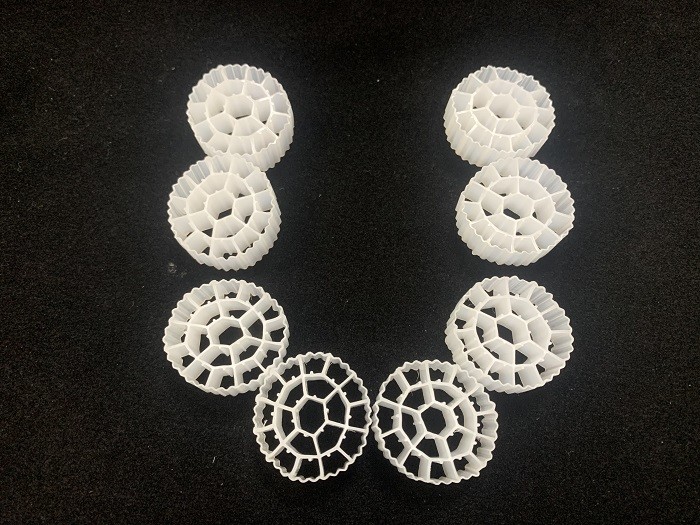

Product picture:
