Place of Origin: | CHINA |
---|---|
Brand Name: | JULI |
Certification: | ROHS,REACH,FDA |
Model Number: | Y3 |
Minimum Order Quantity: | 1CubmicMeter |
Price: | USD160-230/CUBMIC METER |
Packaging Details: | Woven Bag,10-15kg/Bag |
Delivery Time: | 5-8 workdays |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000CUBMIC METERS/MONTH |
Product Name: | Dewatering MBBR Filter Media Bio Ball In White K1 K2 K3 Biocarrier PE05 Full Size MBBR Carrier Offer | Material: | Virgin HDPE |
---|---|---|---|
Color: | White | Density: | 0.94-0.98g/cm3 |
Sample: | Free Sample Is Avaliable | Port: | Shanghai Or Ningbo |
High Light: | Y3 kaldnes k1 bio media,JULI 25mm biological filter media,JULI kaldnes k1 bio media |

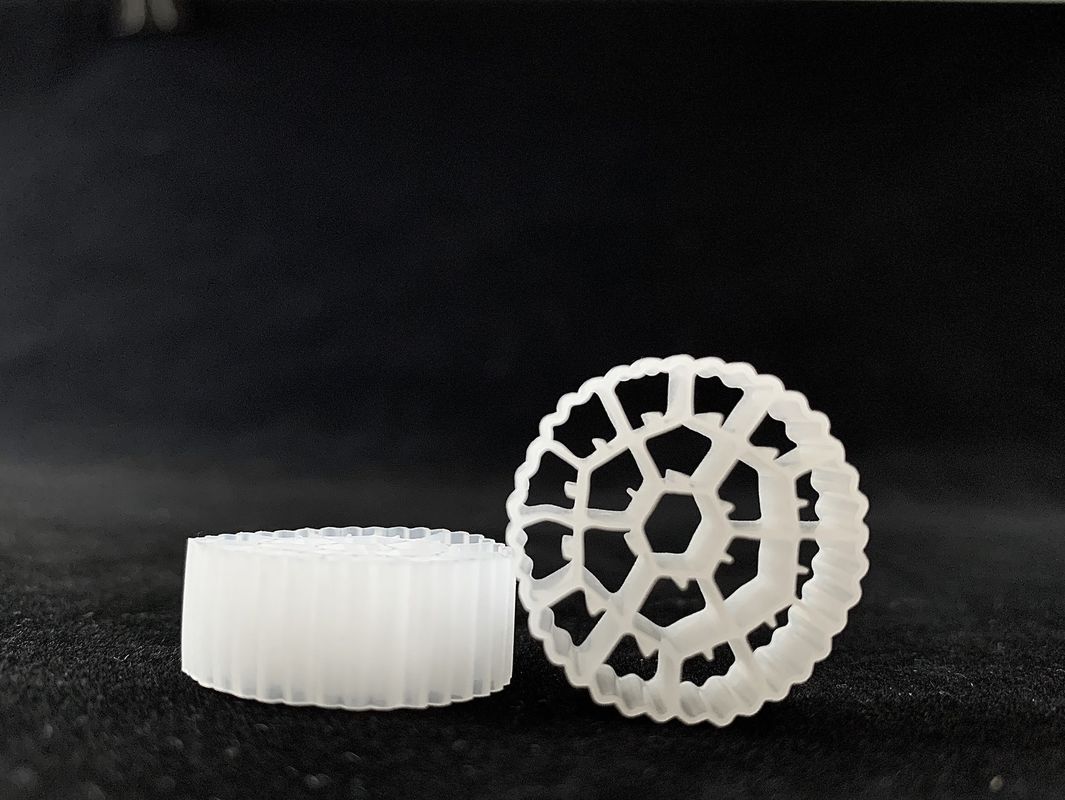

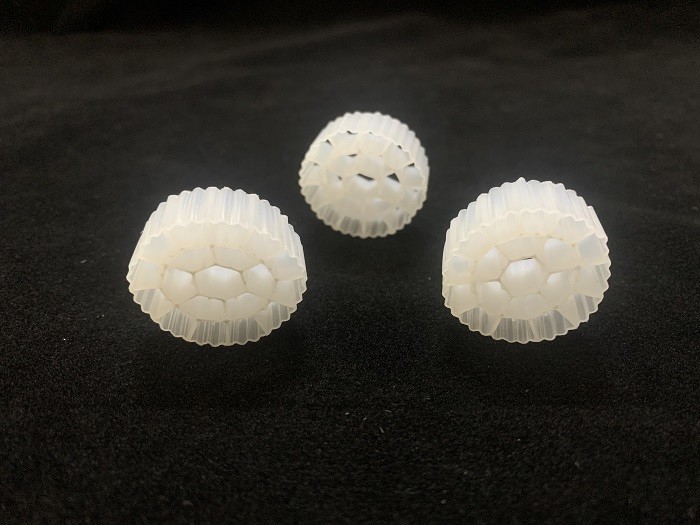

Kaldnes k1 bio media Dewatering MBBR carrier Media Bio ball supply Biocarrier 25*10mm size offer
Product Description:
Kaldnes k1 bio media is a kind of polyethylene bio filter media that has a specific wheel-like shape, with a cross-shaped central portion. It modified polymeric materials with the promoted additions of bio-enzyme, and k1 mbbr media has high surface area per unit volume and allowing for more space for bacterial colonisation. This kind of kaldnes k1 media also has a neat feature that allows more than just bacteria to colonise it. As other mbbr meida, K1 mbbr bio media often made as pure polyethylene white in colour. It allows for visual monitoring of the biofilm’s condition.
Disadvantage of low price and off grade MBBR Filter Media:
As we all know, filler is the core of MBBR Process. Therefore, the performance of the filler directly affects the difficulty of membrane hanging, the amount of biomass in the reactor and the treatment effect of the reactor.
For low-cost fillers, the factory may use recycled materials, or the wall thickness is very thin, or add fillers such as calcium carbonate. During the operation, with the passage of time, the agitator stirs, the fillers may be broken in the reaction tank. However, the filler is a kind of non degradable material, which is difficult to clean in the reaction tank, but becomes a kind of pollution.
Technical Parameter:
ITEM | Y1 | Y2 | Y3 | Y4 | Y5 | |
Rooms | rooms | 4 | 5 | 19 | 6 | 64 |
Size | mm | 11*7 | 10*7 | 25*10 | 16*10 | 25*4 |
Effective specific surface area | m2/m3 | 900 | 1000 | 600 | 800 | 1200 |
Density | g/cm3 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 | 0.95±0.02 |
Stacked | Pcs/m3 | >830000 | >850000 | >97000 | >260000 | >210000 |
Porosity | % | >85 | >85 | >90 | >85 | >85 |
Dosage | % | 15-68 | 15-70 | 15-67 | 15-67 | 15-70 |
Nitrification efficiency | gNH4-N/m3*d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
BOD5 oxidation efficiency | gBOD5/m3*d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
COD oxidation efficiency | gCOD/m3*d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
proper temperature | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Service life | Year | >20 | >20 | >20 | >20 | >20 |
Bulk Density | Kg/m3 | 135kg | 145kg | 95kg | 120kg | 135kg |
